Design intent
Leaf structure, pivot hardware and floor support are considered together.
Exterior & Entrance Doors / Design configuration

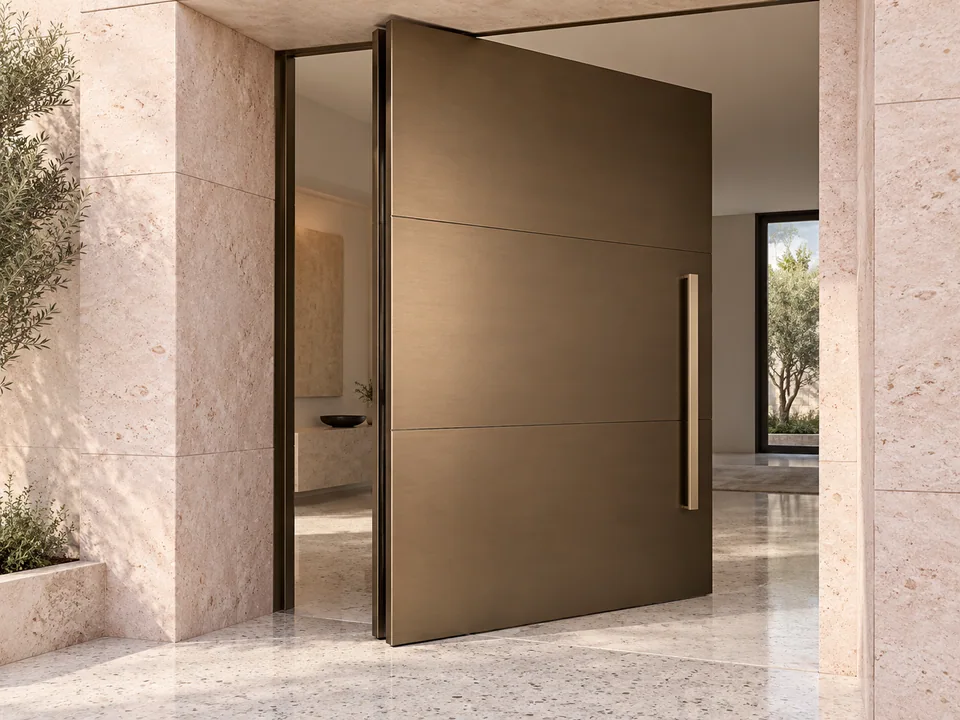

Aluminum Pivot Entrance Door
A sculptural entrance with a satin bronze design direction and a pivot opening. Define the offset, clear passage and floor interface before the appearance is signed off.
AI-generated design concepts illustrate possible configurations. Confirm the exact construction, finish and hardware in your project specification.
Exterior & Entrance Doors
Your configuration, considered.
A sculptural entrance with a satin bronze design direction and a pivot opening. Define the offset, clear passage and floor interface before the appearance is signed off.
- Opening
- Pivot
- Frame
- Aluminum frame
- Leaf / panel
- Aluminum-clad leaf; core to be specified
- Finish direction
- Powder coat
Dimensions, materials and supply scope are agreed in your quotation and project drawings.
Designed around the opening
Pivot movement and clear passage
Leaf structure, pivot hardware and floor support are considered together.
Configuration choices
Pivot offset and opening arc, Plain, fluted or wood-look surface, Pull handle and locking preparation.
Planning priority
Mark both faces of the wall and draw the swing arc, including the portion of the leaf behind the pivot.
Define the assembly
Construction, clearly separated.
Frame, leaf or panels, finish and hardware must be confirmed as a compatible assembly.
01
Supporting frameFrame sections, fixings and the interface with the building opening.
02
Door leafActual metal construction and internal build-up, reviewed by model.
03
Surface & glazingFinish system and any glass build-up, retention and seals.
04
Hardware & thresholdHinges or pivot, lock, handle, threshold and installation accessories.
Schematic component relationship. This is not a manufacturing section, dimensioned drawing or performance certificate.
Technical specification
A specification that fits
your project.
Work through the dimensions, construction and building interface below. Final values are recorded against your selected assembly and approved drawings.
How we approach product evidence| Specification | Details to coordinate |
|---|---|
| Opening width / height | Finished and rough openings with units |
| Leaf size / weight | Full assembly including glazing and hardware |
| Frame section / wall thickness | Profile details, fixings and building interface |
| Pivot / hinge system | Model, fixing detail and allowed loading |
| Threshold / glazing | Floor detail, glass build-up and sealing |
| Surface treatment | Actual coating specification and sample |
| MOQ / lead time | Quantity, configuration and order schedule |
| Performance reports | Requested project criteria and applicable model scope |
Quotation clarity
Agree what comes
with the assembly.
Every component needs a place in the quotation: included in supply, offered as an option, or provided by others.
FrameConfirm in quotation
LeafConfirm in quotation
Glazing (if applicable)Confirm in quotation
Hinges / pivot setConfirm in quotation
Lock and handleConfirm in quotation
Threshold and sealsConfirm in quotation
Installation accessoriesConfirm in quotation
Protective packagingConfirm in quotation
Packaging dimensions, gross weight, unloading arrangements and spare-part references are confirmed against the final order.
Plan the building interface
Resolve the installation details early.
01 / Survey
Confirm the opening.
Record sizes, wall thickness, finished floor level, handing and adjacent construction. Identify who checks the site measurements.
02 / Coordinate
Approve the interface.
Resolve the frame fixing, threshold, leaf clearances and hardware with the actual building detail before production authorization.
03 / Receive
Protect and inspect.
Plan unloading, package checks, protected storage and a record of any damage. Use the agreed instructions and support route.
Before you specify
Questions worth asking
How is this configuration tailored to my project?
Use the design direction and configuration choices as a starting point. Send your opening schedule, preferred finish and intended use so the exact construction, dimensions, hardware and supply scope can be reviewed and set out in writing.
What dimensions can I order?
Send the opening measurements, intended use and site constraints. The proposed size must be reviewed with the actual frame, leaf or panel construction and hardware. Available dimensions are confirmed for your selected configuration in the project quotation.
Can the finish match another door in the project?
Share the desired color or wood-look direction and request coordinated physical samples. Different substrates, surface processes, orientations and batches can create visible differences.
What is included in the quote?
The written quotation should list the frame or track system, leaf or panels, glazing, hardware, seals, operator where applicable, accessories and packaging. Each inclusion, option and item supplied by others must be confirmed.
Who handles installation and adjustments?
Installation and responsibility for the opening survey are agreed for the project. Use the approved drawings and product-specific instructions; no general worldwide installation service is implied.
How are lead time and delivery confirmed?
Timing, packaging, trade terms, unloading and requested spare parts are set out for the agreed order after specification review. No fixed production or transit period is assumed.
